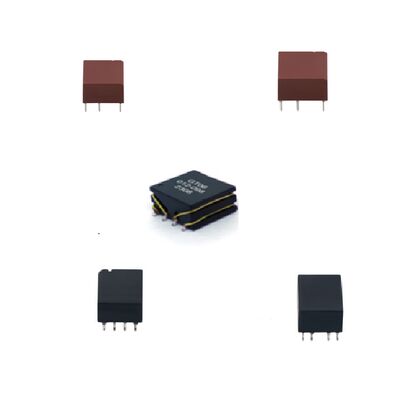

| Parameter | Specification |
|---|---|
| Turns Ratio Options | Multiple ratios available (1:1, 1:2, 8:3, 3:4, etc.) depending on model |
| Inductance (Pin 1-3) | 538µH to 680µH (±35%) measured at 100kHz, 100mVrms |
| Leakage Inductance (1-3 with 4-6 shorted) | As low as 0.6µH to 2.0µH max |
| Capacitance (Primary to Secondary) | ≤ 15pF to 30pF max |
| DCR (Primary 1-3) | 750mΩ to 1500mΩ max |
| DCR (Secondary 6-4) | 750mΩ to 1300mΩ max |
| Isolation Voltage | 4KVrms (550Vrms continuous) |
| Creepage & Clearance | ≥ 8mm between primary and secondary |
| Operating Temperature | -40℃ to +125℃ |
| Storage Temperature | -40℃ to +125℃ |
| Wave Soldering Profile | Compliant with preheat, ramp-up, critical zone, and peak temperature guidelines |
| MSL Rating | Level 1, floor life 0.5 year under ≤30°C/60%RH |
